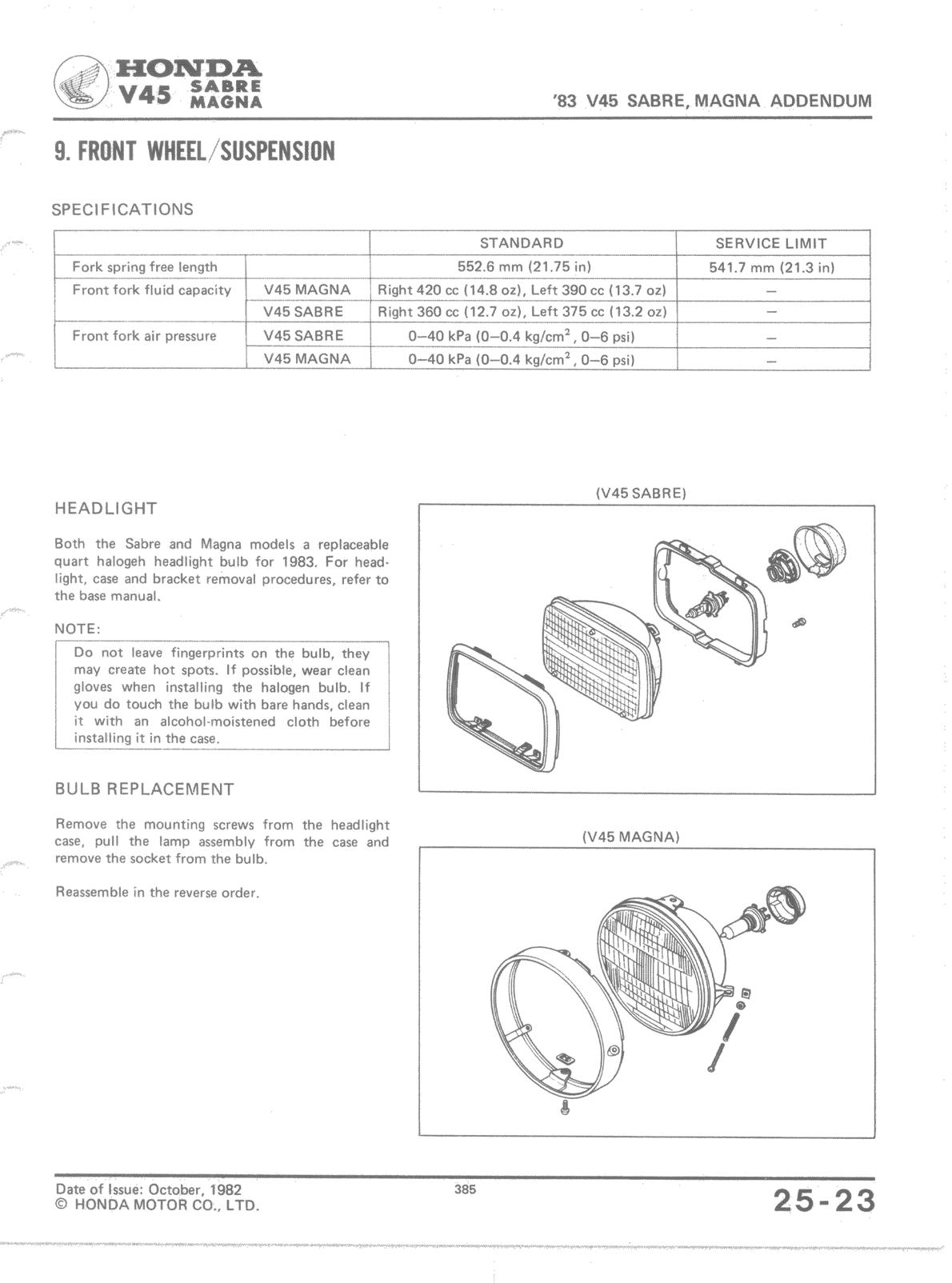

V45 '83 V45 SABRE, MAGNA ADDENDUM 9. FRONT WHEEL/SUSPENSION SPECIFICATIONS STANDARD SERVICE LIMIT Fork spring free length 552.6 mm (21.75 in) 541.7 mm (21.3 in) Front fork fluid capacity V45 MAGNA Right 420 cc (14.8 oz), Left 390 cc (13.7 oz) V45 SABRE Right 360 cc (12.7 oz), Left 375 cc (13.2 oz) Front fork air pressure V45 SABRE 0-40 kPa (0-0.4 kg/cm2, 0-6 psi) V45 MAGNA 0-40 kPa (0-0.4 kg/cm2, 0-6 psi) HEADLIGHT Both the Sabre and Magna models a replaceable quart halogeh headlight bulb for 1983. For headlight, case and bracket removal procedures, refer to the base manual. NOTE: Do not leave fingerprints on the bulb, they may create hot spots. If possible, wear clean gloves when installing the halogen bulb. If you do touch the bulb with bare hands, clean it with an alcohol-moistened cloth before installing it in the case. BULB REPLACEMENT Remove the mounting screws from the headlight case, pull the lamp assembly from the case and remove the socket from the bulb. Reassemble in the reverse order. (V45 SABRE) (V45 MAGNA) 385 Date of Issue: October, 1982 © HONDA MOTOR CO., LTD. 25-23
