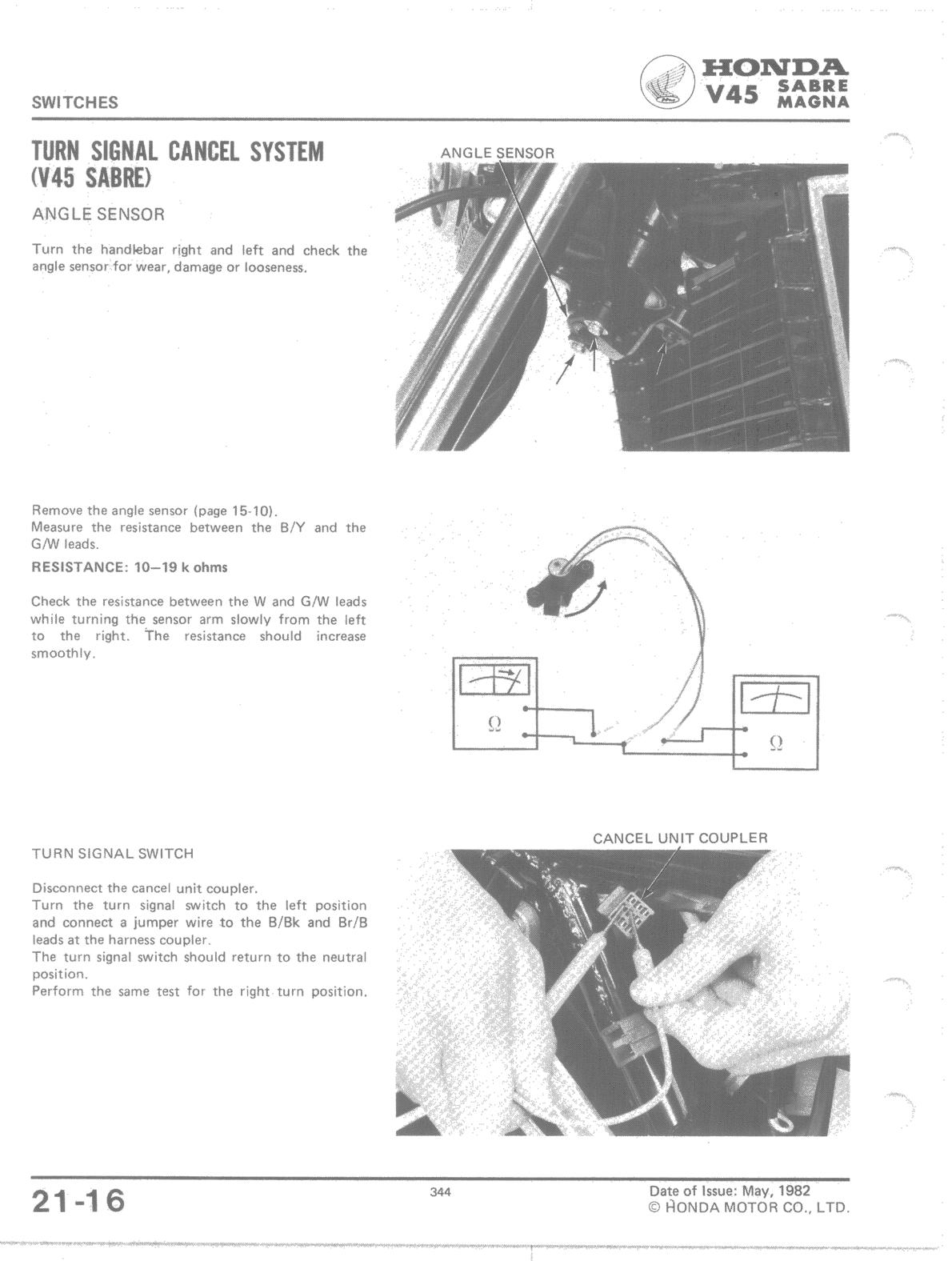

SWITCHES V45 SABRE TURN SIGNAL CANCEL SYSTEM (V45 SABRE) ANGLE SENSOR Turn the handlebar right and left and check the angle sensor for wear, damage or looseness. ANGLE SENSOR Remove the angle sensor (page 15-10). Measure the resistance between the B/Y and the G/W leads. RESISTANCE: 10-19 k ohms Check the resistance between the W and G/W leads while turning the sensor arm slowly from the left to the right. The resistance should increase smoothly. CANCEL UNIT COUPLER TURN SIGNAL SWITCH Disconnect the cancel unit coupler. Turn the turn signal switch to the left position and connect a jumper wire to the B/Bk and Br/B leads at the harness coupler. The turn signal switch should return to the neutral position. Perform the same test for the right turn position. 21-16 344 Date of Issue: May, 1982 ©1--iONDA MOTOR CO., LTD.
