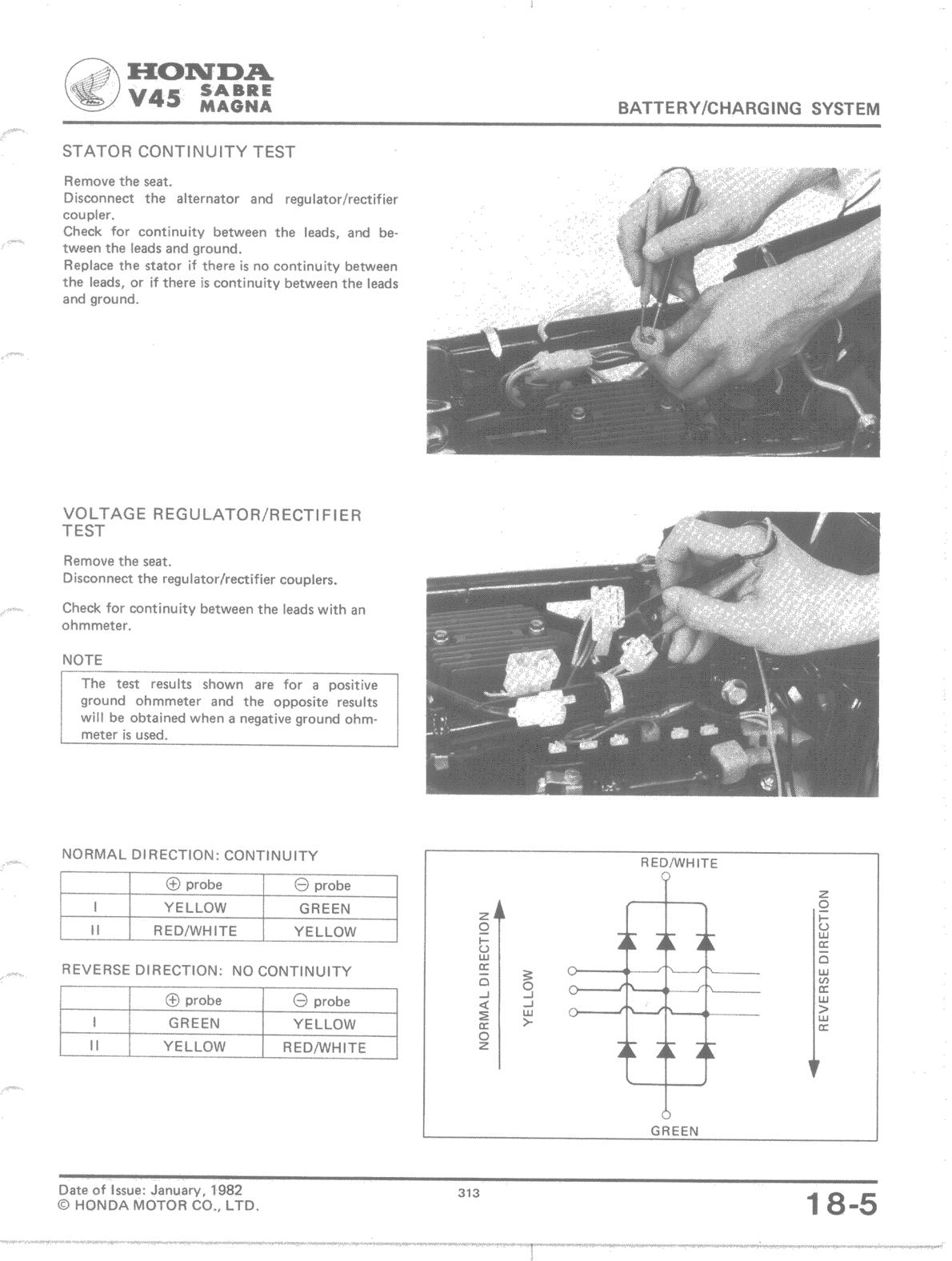

HONDA V45 BATTERY/CHARGING SYSTEM STATOR CONTINUITY TEST Remove the seat. Disconnect the alternator and regulator/rectifier coupler. Check for continuity between the leads, and between the leads and ground. Replace the stator if there is no continuity between the leads, or if there is continuity between the leads and ground. VOLTAGE REGULATOR/RECTIFIER TEST Remove the seat. Disconnect the regulator/rectifier couplers. Check for continuity between the leads with an ohmmeter. NOTE The test results shown are for a positive ground ohmmeter and the opposite results will be obtained when a negative ground ohmmeter is used. NORMAL DIRECTION: CONTINUITY 0 probe 8 probe I YELLOW GREEN II RED/WHITE YELLOW REVERSE DIRECTION: NO CONTINUITY C) probe e probe I GREEN YELLOW II YELLOW RED/WHITE RED/WHITE GREEN 313 Date of Issue: January, 1982 0 HONDA MOTOR CO., LTD. 18-5
