REAR WHEEL/SUSPENSION/BRAKE
V45

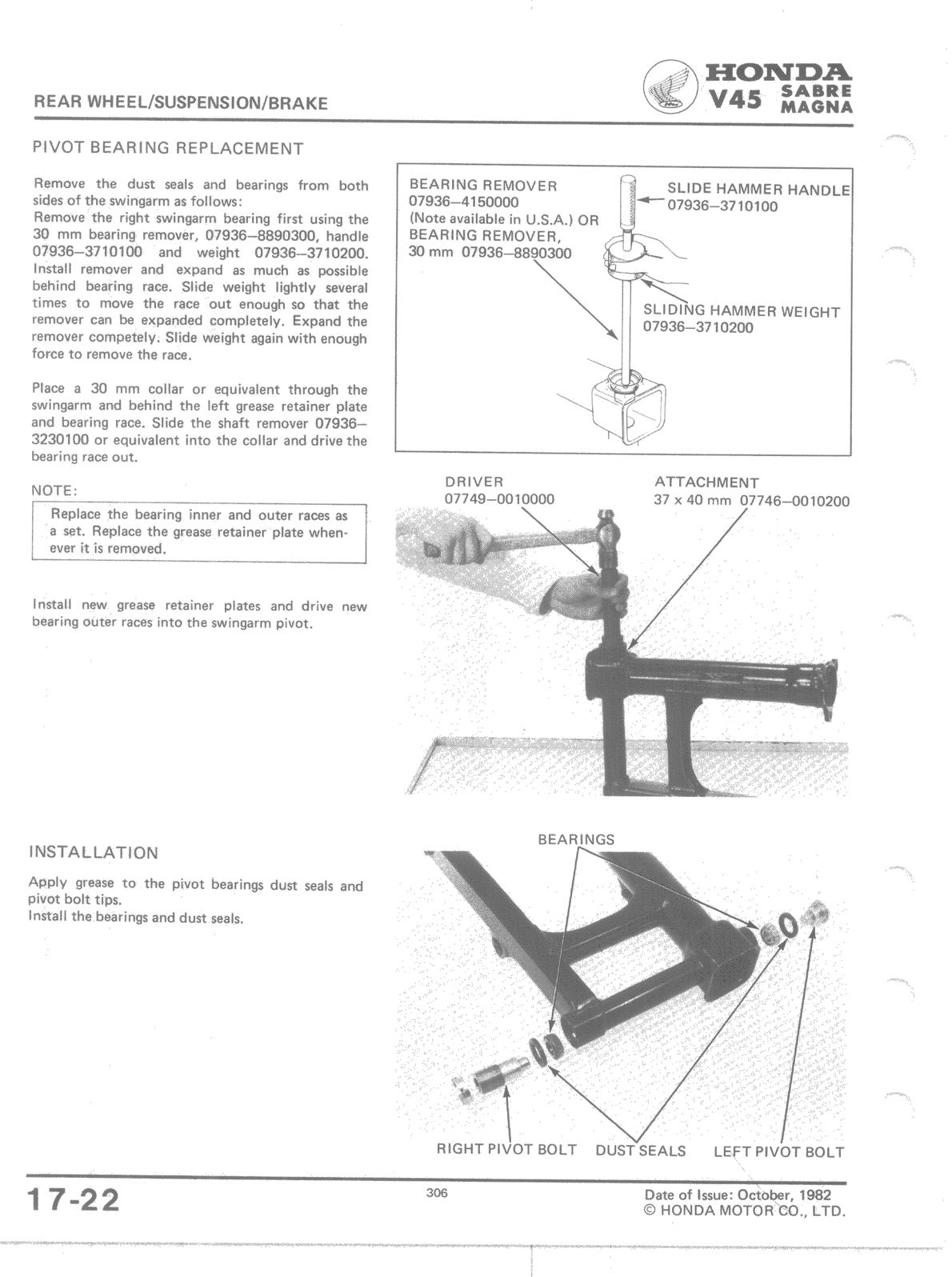

PIVOT BEARING REPLACEMENT
Remove the dust seals and bearings from both sides of the swingarm as follows:
Remove the right swingarm bearing first using the 30 mm bearing remover, 07936-8890300, handle 07936-3710100 and weight 07936-3710200. Instan remover and expand as much as possible behind bearing race. Slide weight lightly several times to move the race out enough so that the remover can be expanded completely. Expand the remover competely. Slide weight again with enough force to remove the race.
Place a 30 mm collar or equivalent through the swingarm and behind the left grease retainer plate and bearÃng race. Slide the shaft remover 07936— 3230100 or equivalent into the collar and drive the bearing race out.
BEARING REMOVER
07936-4150000
(Note available in U.S.A.) OR BEARING REMOVER,
30 mm 07936-8890300
SLIDE HAMMER HANDLE
07936-3710100
SLIDING HAMMER WEIGHT
07936-3710200
DRIVER ATTACHMENT
NOTE: 07749-0010000 37 x 40 mm 07746-0010200
Replace the bearing inner and outer races as a set. Replace the grease retainer plate whenever it is removed.
Install new grease retainer plates and drive new bearing outer races into the swingarm pivot.
BEARINGS
INSTALLATION
Apply grease to the pivot bearings dust seals and pivot bolt tips.
Install the bearings and dust seals.
RIGHT PIVOT BOLT DUST SEALS LEFT PIVOT BOLT
306
Date of Issue: October, 1982 O HONDA MOTOR CO., LTD.
17-22
