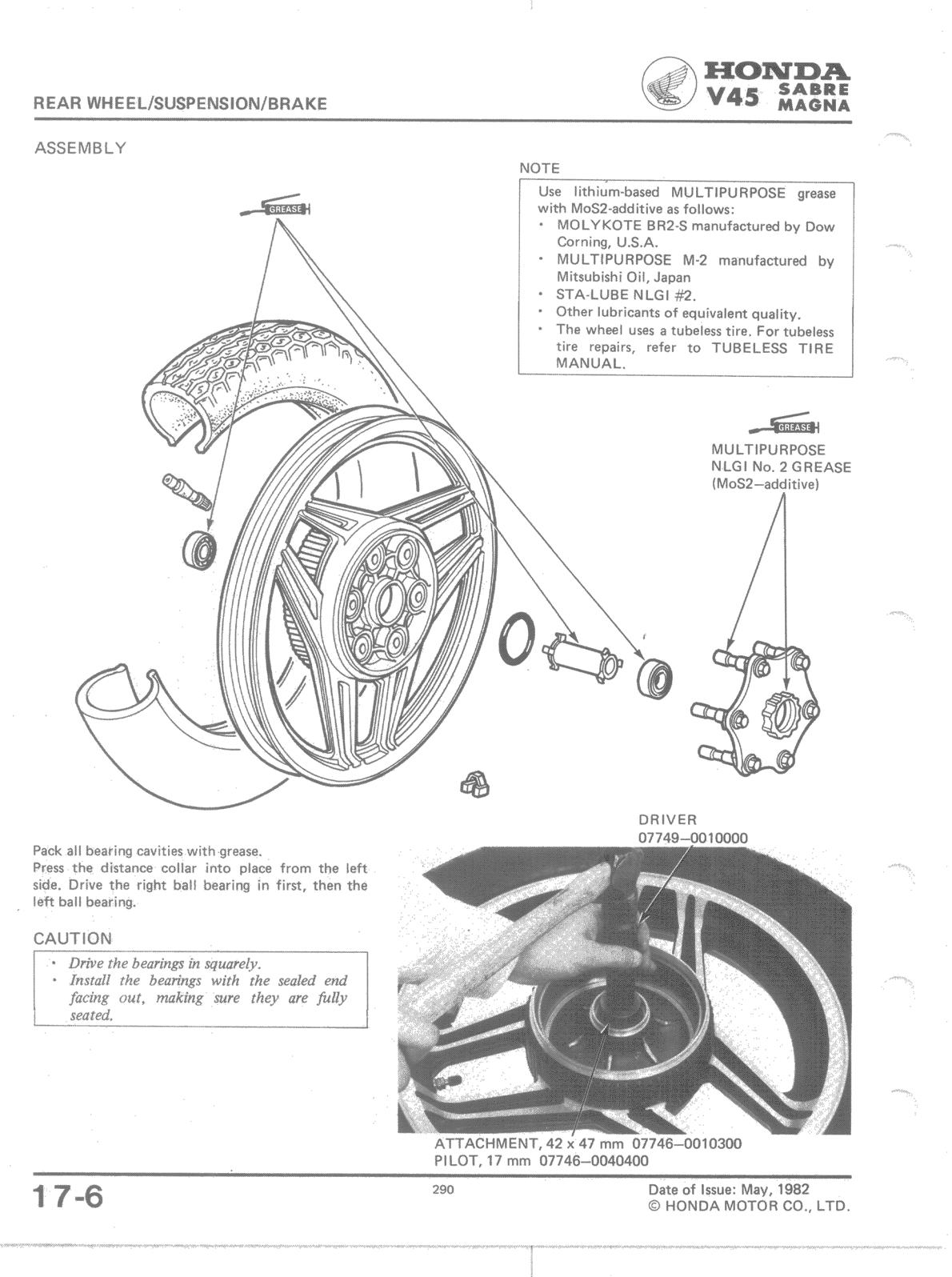

V45 REAR WHEEL/SUSPENSION/BRAKE ASSEMBLY NOTE Use lithium-based MULTIPURPOSE grease with MoS2-additive as follows: MOLYKOTE BR2-S manufactured by Dow Corning, U.S.A. MULTIPURPOSE M-2 manufactured by Mitsubishi Oil, Japan STA-LUBE NLGI #2. Other lubricants of equivalent quality. The wheel uses a tubeless tire. For tubeless tire repairs, refer to TUBELESS TIRE MANUAL. MULTIPURPOSE NLGI No. 2 GREASE (Mo52—additive) DRIVER 07749-0010000 Pack all bearing cavities with grease. Press the distance collar into place from the left side. Drive the right ball bearing in first, then the left ball bearing. CAUTION Drive the bearings in squarely. Install the bearings with the sealed end facing out, making sure they are fully seated. ATTACHMENT, 42 x 47 mm 07746-0010300 PILOT, 17 mm 07746-0040400 290 Date of Issue: May, 1982 © HONDA MOTOR CO., LTD. 17-6
