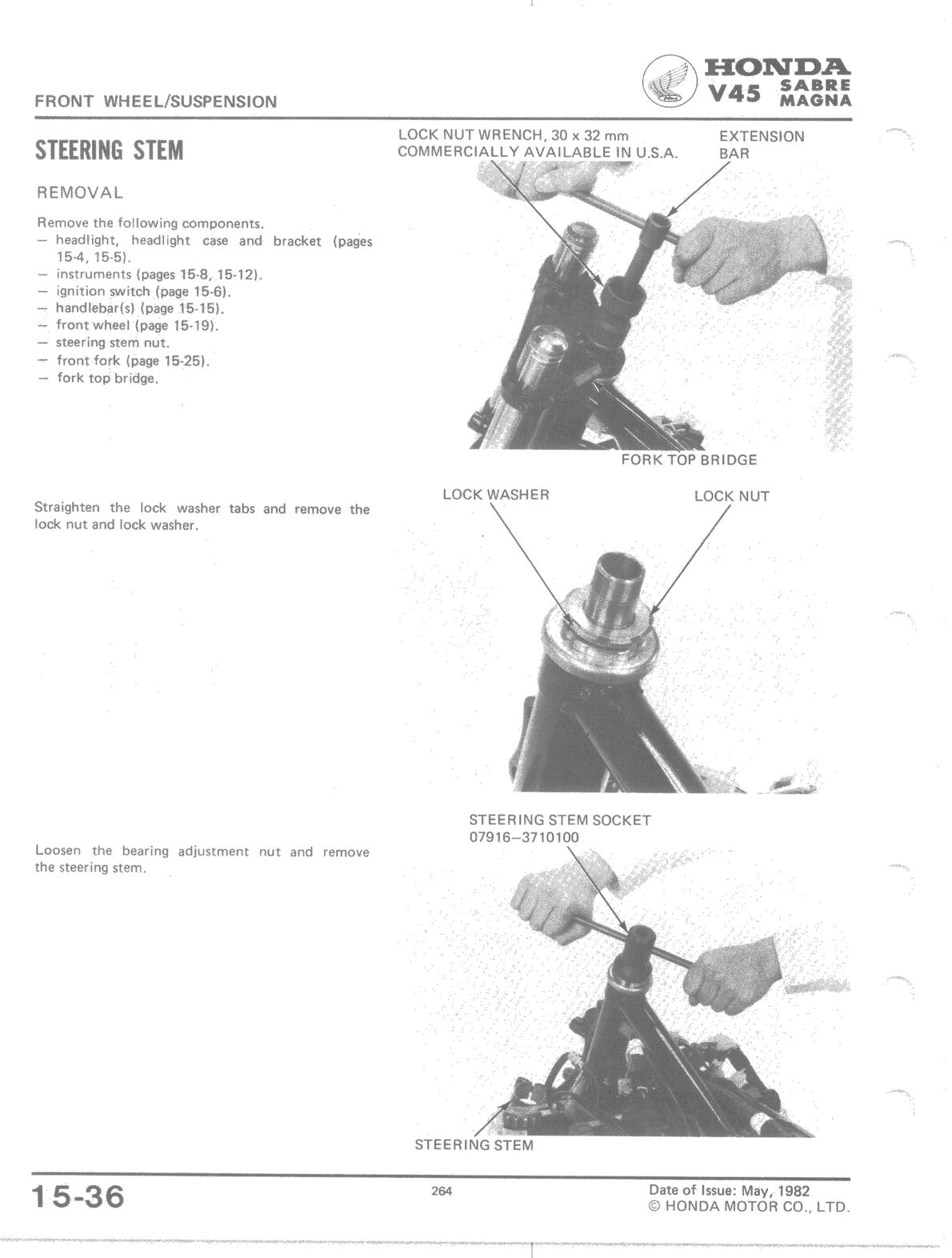

V45 FRONT WHEEL/SUSPENSION LOCK NUT WRENCH, 30 x 32 mm COMMERCIALLY AVAILABLE IN U.S.A. EXTENSION BAR LOCK WASHER LOCK NUT STEERING STEM Remove the following components. headlight, headlight case and bracket (pages 15-4, 15-5). instruments (pages 15-8, 15-12). ignition switch (page 15-6). handlebar(s) (page 15-15). front wheel (page 15-19). steering stem nut. front fork (page 15-25). fork top bridge. FORK TOP BRIDGE STEERING STEM SOCKET 07916 —37 10100 STEERING STEM Straighten the lock washer tabs and remove the lock nut and lock washer. Loosen the bearing adjustment nut and remove the steering stem. 1 5-36 REMOVAL 264 Date of Issue: May, 1982 © HONDA MOTOR CO., LTD.
