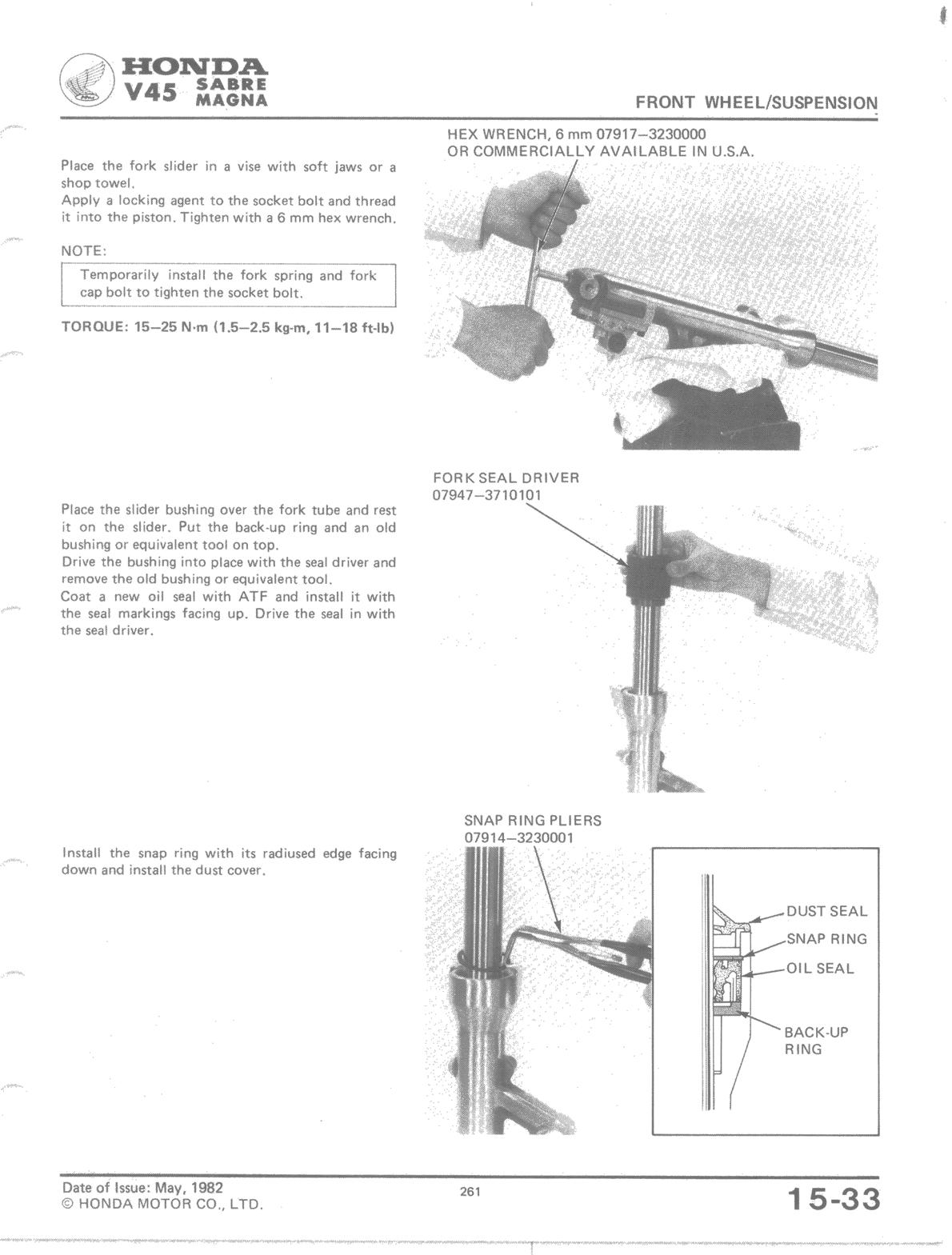

SABRE MAGNA FRONT WHEELSUSPENSION HEX WRENCH, 6 mm 07917-3230000 OR COMMERCIALLY AVAILABLE IN U.S.A. Place the fork slider in a vise with soft jaws or a shop towel. Apply a locking agent to the socket bolt and thread it into the piston. Tighten with a 6 mm hex wrench. NOTE: Temporarily install the fork spring and fork cap bolt to tighten the socket bolt. TORQUE: 15-25 N.m (1.5-2.5 kg-m, 11-18 ft-lb) Place the slider bushing over the fork tube and rest it on the slider. Put the back-up ring and an old bushing or equivalent mol on top. Drive the bushing into place with the seal driver and remove the old bushing or equivalent tool. Coat a new oil seal with ATF and install it with the seal markings facing up. Drive the seal in with the seal driver. FORK SEAL DRIVER 07947 —37 10 101 SNAP RING PLIERS 07914-3230001 Install the snap ring with its radiused edge facing down and install the dust cover. DUST SEAL SNAP RING OIL SEAL BACK-UP RING 261 Date of Issue: May, 1982 © HONDA MOTOR CO., LTD. 1 5-33
