V45
FRONT WHEEL/SUSPENSION

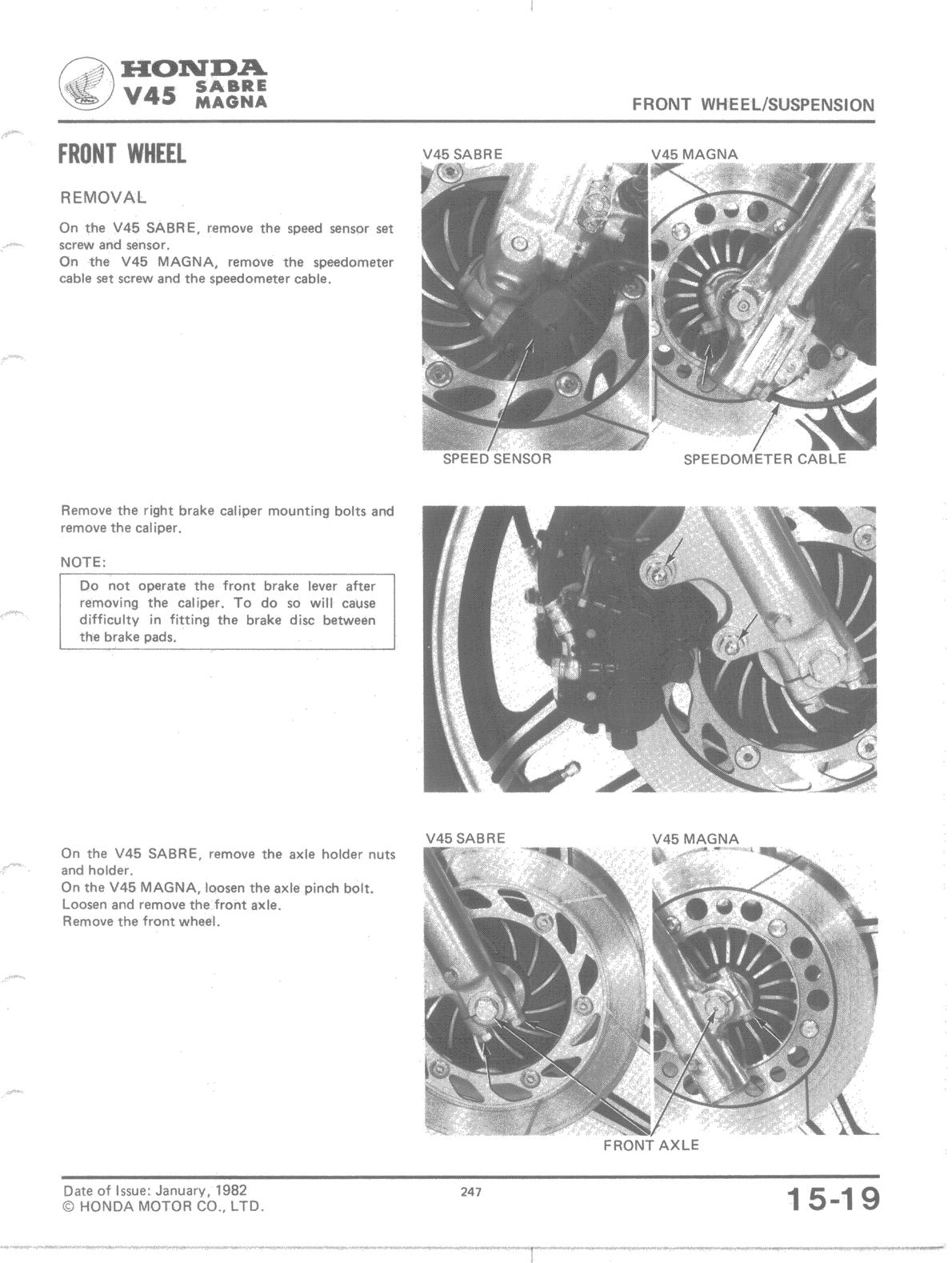

FRONT WHEEL
REMOVAL
On the V45 SABRE, remove the speed sensor set screw and sensor.
On the V45 MAGNA, remove the speedometer cable set screw and the speedometer cable.
V45 SABRE V45 MAGNA
SPEED SENSOR SPEEDOMETER CABLE
Remove the right brake caliper mounting bolts and remove the caliper.
NOTE:
Do not operate the front brake lever after removing the caliper. To do so will cause difficulty in fitting the brake disc between the brake pads.
V45 SABRE V45 MAGNA
On the V45 SABRE, remove the axle holder nuts and holder.
On the V45 MAGNA, loosen the axle pinch bolt. Loosen and remove the front axle.
Remove the front wheel.
FRONT AXLE
247
Date of Issue: January, 1982
© HONDA MOTOR CO., LTD.
15-19
