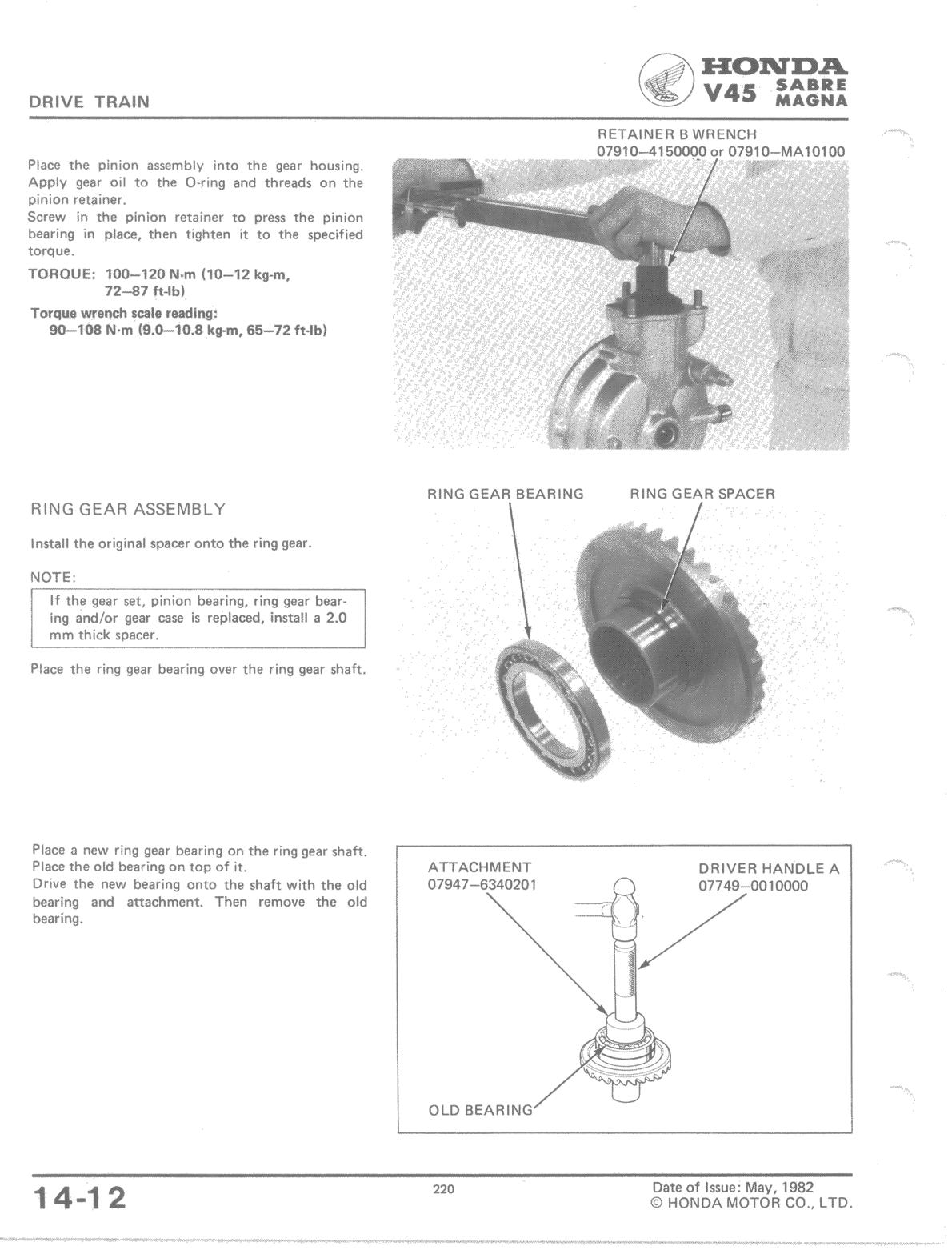

DRIVE TRAIN MAGNA RING GEAR SPACER RING GEAR BEARING RETAINER B WRENCH 07910-4150000 or 07910—MA10100 Place the pinion assembly into the gear housing. Apply gear oil to the 0-ring and threads on the pinion retainer. Screw in the pinion retainer to press the pinion bearing in place, then tighten it to the specified torque. TORQUE: 100-120 N.m (10-12 kg-m, 72-87 ft-lb) Torque wrench scale reading: 90-108111-m (9.0-10.8 kg-m, 65-72 ft-lb) RING GEAR ASSEMBLY Install the original spacer onto the ring gear. NOTE: If the gear set, pinion bearing, ring gear bearing and/or gear case is replaced, install a 2.0 mm thick spacer. Place the ring gear bearing over the ring gear shaft. Place a new ring gear bearing on the ring gear shaft. Place the old bearing on top of it. Drive the new bearing onto the shaft with the old bearing and attachment. Then remove the old bearing. OLD BEARING ATTACHMENT 07947-6340201 DRIVER HANDLE A 07749-0010000 220 Date of Issue: May, 1982 0 HONDA MOTOR CO., LTD. 14-12
