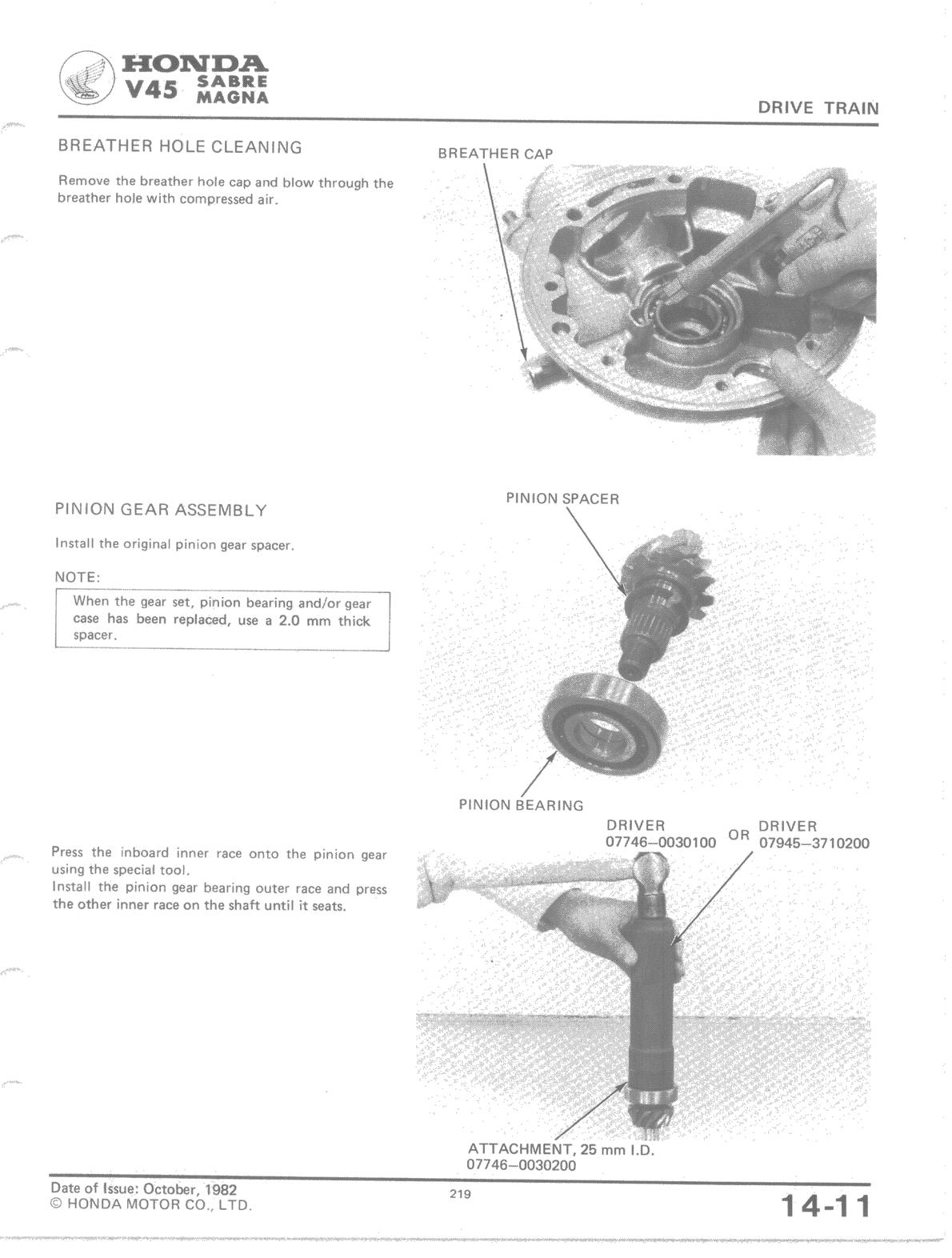

HONDA V45 DRIVE TRAIN BREATHER HOLE CLEANING BREATHER CAP Remove the breather hole cap and blow through the breather hole with compressed air. PINION SPACER PINION GEAR ASSEMBLY Install the original pinion gear spacer. NOTE: When the gear set, pinion bearing and/or gear case has been replaced, use a 2.0 mm thick spacer. PINION BEARING DRIVER DRIVER 07746-0030100 OR07945-3710200 Press the inboard inner race onto the pinion gear using the special tool. Install the pinion gear bearing outer race and press the other inner race on the shaft until it seats. ATTACHMENT, 25 mm I.D. 07746-0030200 Date of Issue: October, 1982 219 © HONDA MOTOR CO., LTD 1 4-1
