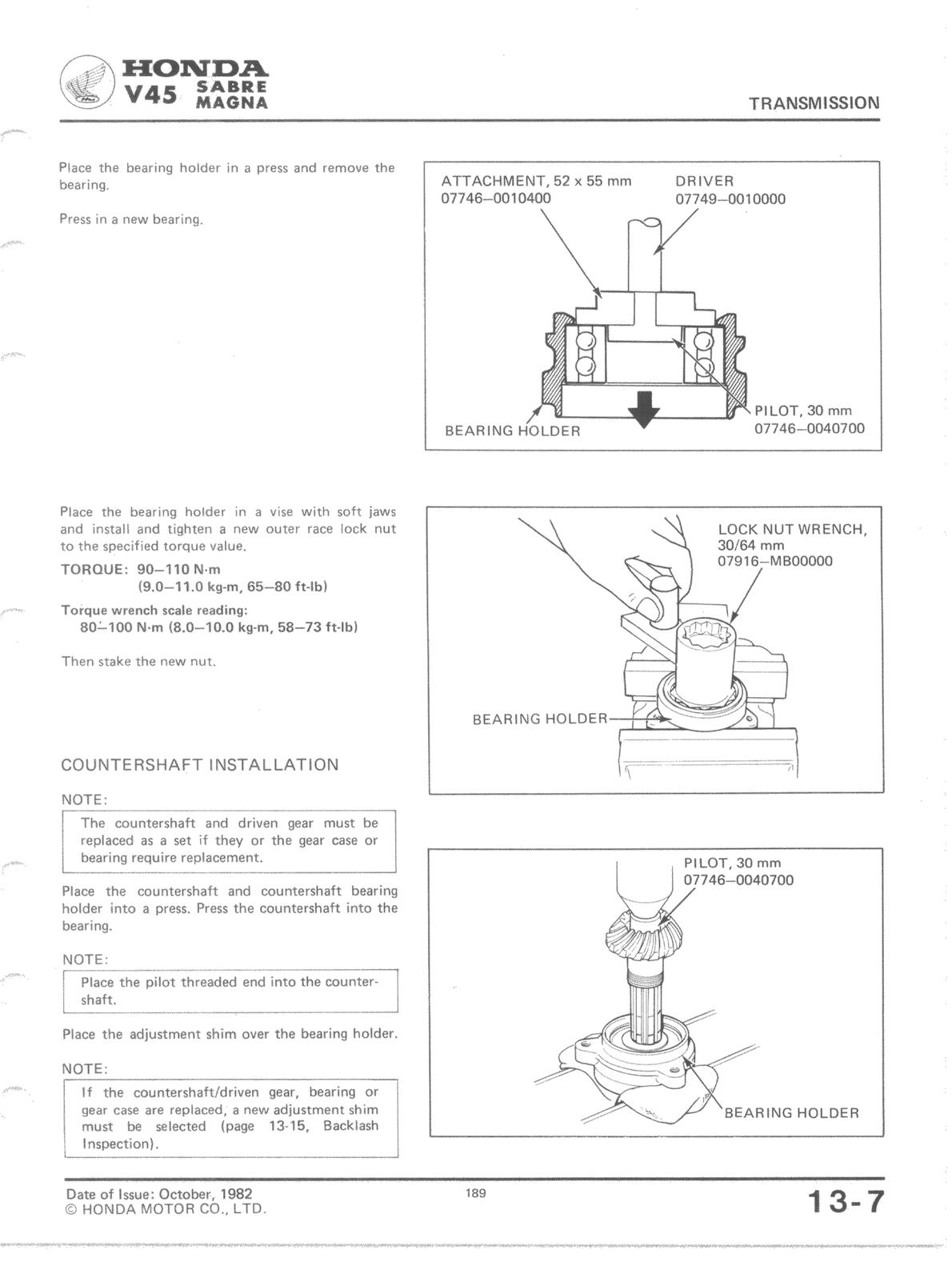

V45 TRANSMISSION Place the bearing holder in a press and remove the bearing. Press in a new bearing. ATTACHMENT, 52 x 55 mm 07746-0010400 LOCK NUT WRENCH, 30/64 mm 07916—MB00000 Place the bearing holder in a vise with soft jaws and install and tighten a new outer race lock nut to the specified torque value. TORQUE: 90-110 N•m (9.0-11.0 kg-m, 65-80 ft-lb) Torque wrench scale reading: 80L100 N-m (8.0-10.0 kg-m, 58-73 ft-lb) Then stake the new nut. COUNTERSHAFT INSTALLATION NOTE: The countershaft and driven gear must be replaced as a set if they or the gear case or bearing require replacement. Place the countershaft and countershaft bearing holder into a press. Press the countershaft into the bearing. NOTE: Place the pilot threaded end into the counter- shaft. Place the adjustment shim over the bearing holder. NOTE: If the countershaft/driven gear, bearing or gear case are replaced, a new adjustment shim must be selected (page 1315, Backlash Inspection). PILOT, 30 mm 07746-0040700 BEARING HOLDER 189 Date of Issue: October, 1982 (C) HONDA MOTOR CO., LTD. 1 3- 7
