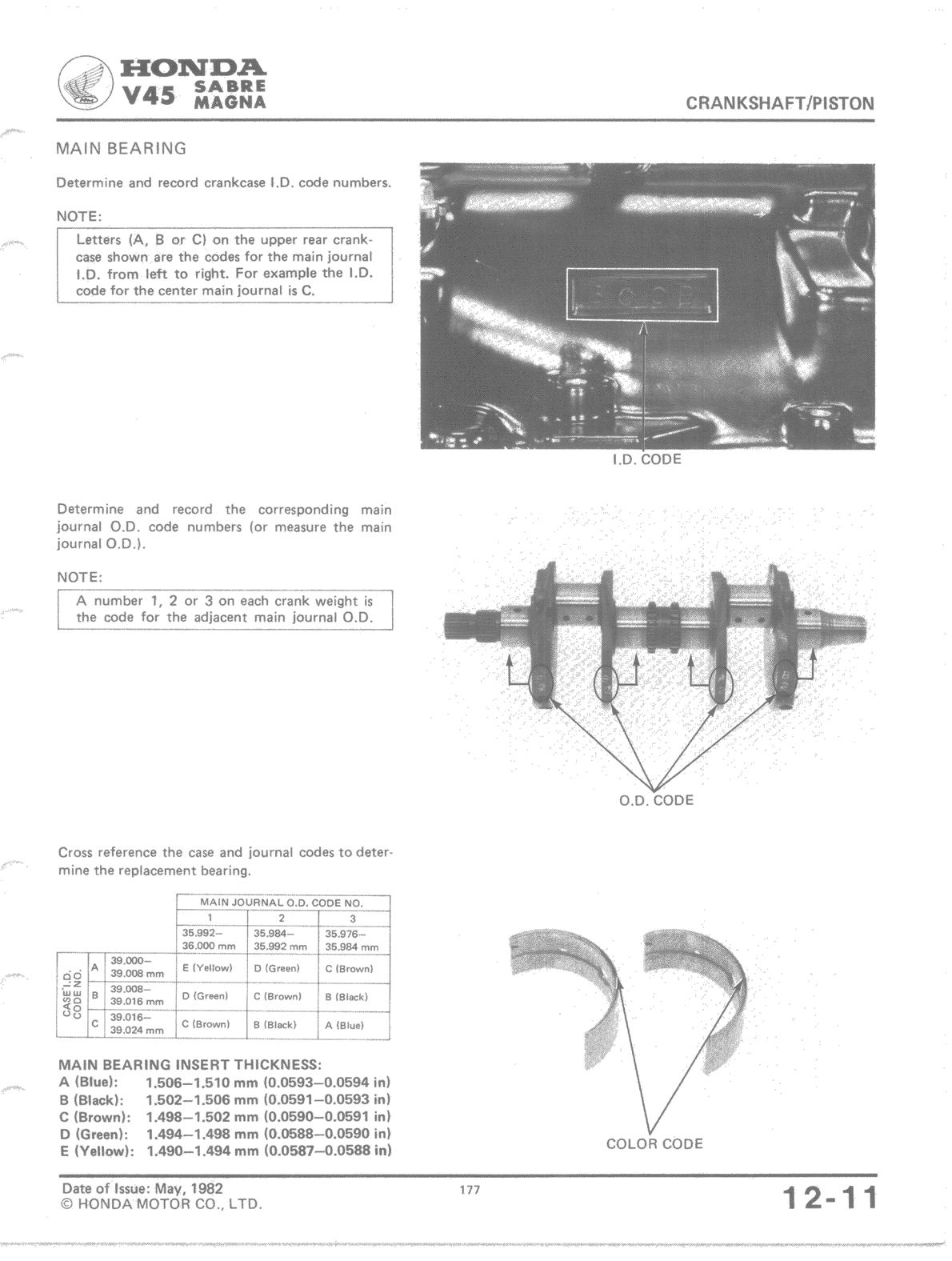

HONDA V45 CRANKSHAFT/PISTON MAIN BEARING Determine and record crankcase I.D. code numbers. NOTE: Letters (A, B or C) on the upper rear crankcase shown are the codes for the main journal I.D. from left to right. For example the I.D. code for the center main journal is C. I.D. CODE Determine and record the corresponding main journal O.D. code numbers (or measure the main journal 0.D.). NOTE: A number 1, 2 or 3 on each crank weight is the code for the adjacent main journal O.D. O.D. CODE Cross reference the case and journal codes to determine the replacement bearing. MAIN JOURNAL O.D. CODE NO. 1 2 3 35.992— 35.984— 35.976— 36.000 mm 35.992 mm 35.984 mm A 39.000— mm E (YelIow) D (Green) C (Brown) B 39.008— 0 (Green) C (Brown) 8 (Black) 39.016 mm 39.016— c 39.024 mm C (Brown) 8 (Black) A (Blue) MAIN BEARING INSERT THICKNESS: A (Blue): 1.506-1.510 mm (0.0593-0.0594 in) B (Black): 1.502-1.506 mm (0.0591-0.0593 in) C (Brown): 1.498-1.502 mm (0.0590-0.0591 in) D (Green): 1.494-1.498 mm (0.0588-0.0590 in) E (Yellow): 1.490-1.494 mm (0.0587-0.0588 in) COLOR CODE 177 Date of Issue: May, 1982 ® HONDA MOTOR CO., LTD. 12-11
