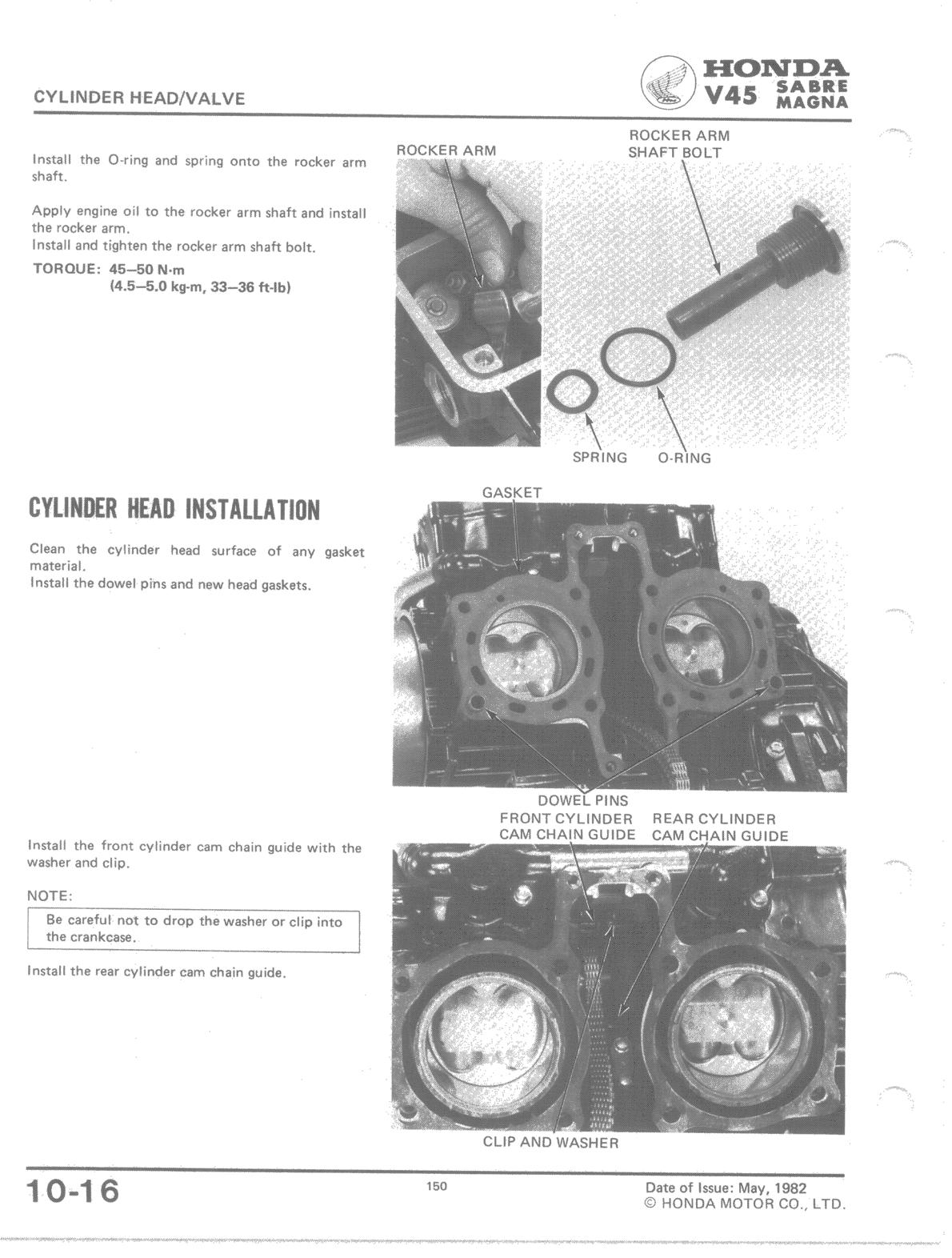

V45 CYLINDER HEAD/VALVE ROCKER ARM SHAFT BOLT ROCKER ARM Install the 0-ring and spring onto the rocker arm shaft. Apply engine oil to the rocker arm shaft and install the rocker arm. Install and tighten the rocker arm shaft bolt. TORQUE: 45-50 N•m (4.5-5.0 kg-m, 33-36 ft-Ib) SPRING 0-RING GASKET DOWEL PINS FRONT CYLINDER REAR CYLINDER CAM CHAIN GUIDE CAM CHAIN GUIDE Install the front cylinder cam chain guide with the washer and clip. NOTE: Be careful not to drop the washer or clip into the crankcase. Install the rear cylinder cam chain guide. CYLINDER HEAD INSTALLATION Clean the cylinder head surface of any gasket material. Install the dowel pins and new head gaskets. CLIP AND WASHER 150 Date of Issue: May, 1982 0 HONDA MOTOR CO., LTD. 1 0 -1 6
