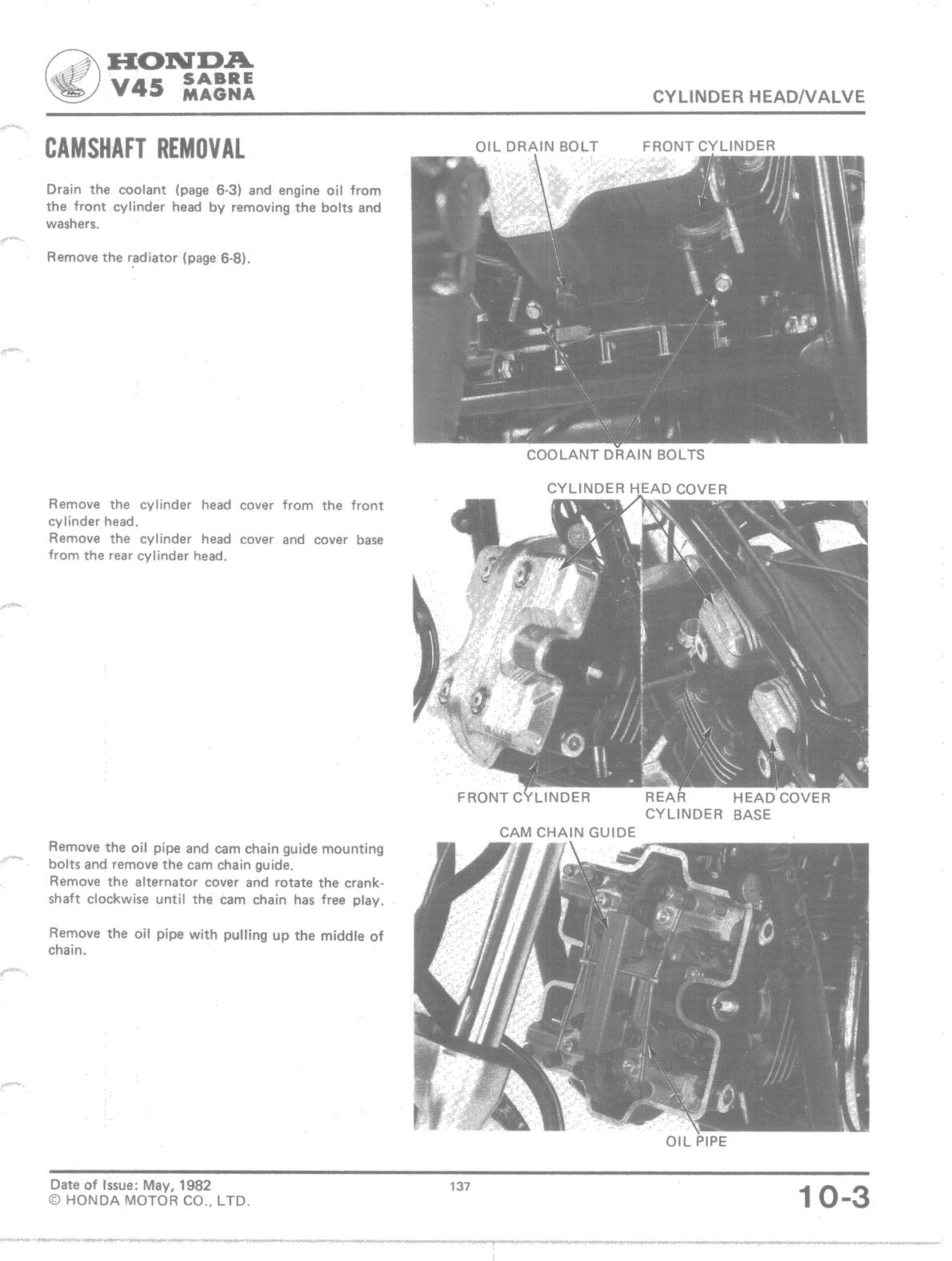

HONDA V45 MAGNA CYLINDER HEAD/VALVE CAMSHAFT REMOVAL Drain the coolant (page 6-3) and engine oil from the front cylinder head by removing the bolts and washers. Remove the radiator (page 6-8). OIL DRAIN BOLT FRONT CYLINDER COOLANT DRAIN BOLTS CYLINDER HEAD COVER cover from the front cover and cover base REAR HEAD COVER CYLINDER BASE CAM CHAIN GUIDE Remove the cylinder head cylinder head. Remove the cylinder head from the rear cylinder head. OIL PIPE Remove the oil pipe and cam chain guide mounting bolts and remove the cam chain guide. Remove the alternator cover and rotate the crankshaft clockwise until the cam chain has free play. Remove the oil pipe with pulling up the middle of chain. 137 Date of Issue: May, 1982 0 HONDA MOTOR CO., LTD. 10-3
