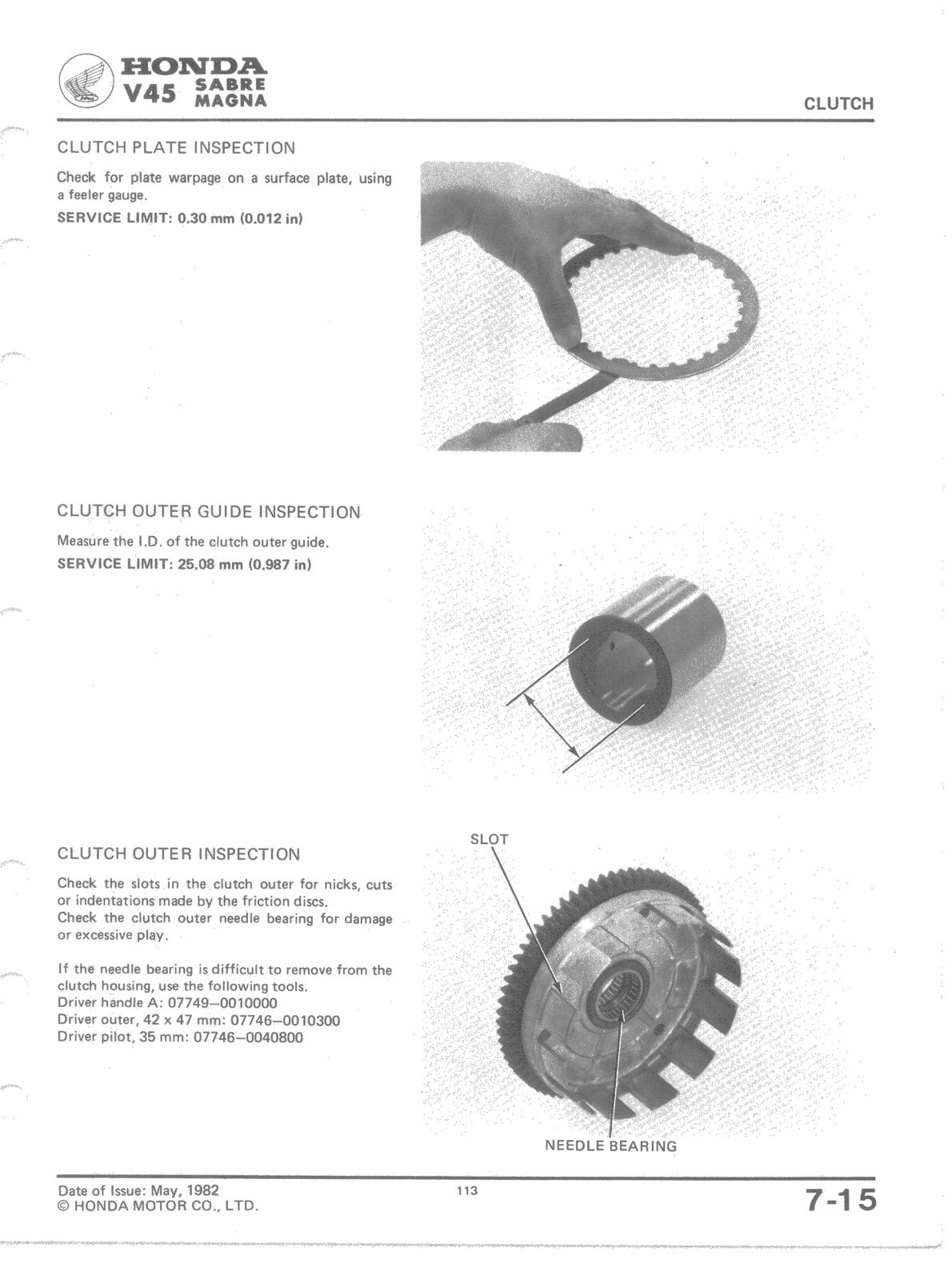

V45 CLUTCH CLUTCH PLATE INSPECTION Check for plate warpage on a surface plate, using a feeler gauge. SERVICE LIMIT: 0.30 mm (0.012 in) CLUTCH OUTER GUIDE INSPECTION Measure the I.D. of the clutch outer guide. SERVICE LIMIT: 25.08 mm (0.987 in) CLUTCH OUTER INSPECTION Check the slots in the clutch outer for nicks, cuts or indentations made by the friction discs. Check the clutch outer needle bearing for damage or excessive play. If the needle bearing is difficult to remove from the clutch housing, use the following tools. Driver handle A: 07749-0010000 Driver outer, 42 x 47 mm: 07746-0010300 Driver pilot, 35 mm: 07746-0040800 SLOT NEEDLE BEARING 113 Date of Issue: May, 1982 © HONDA MOTOR CO., LTD. 7-15
