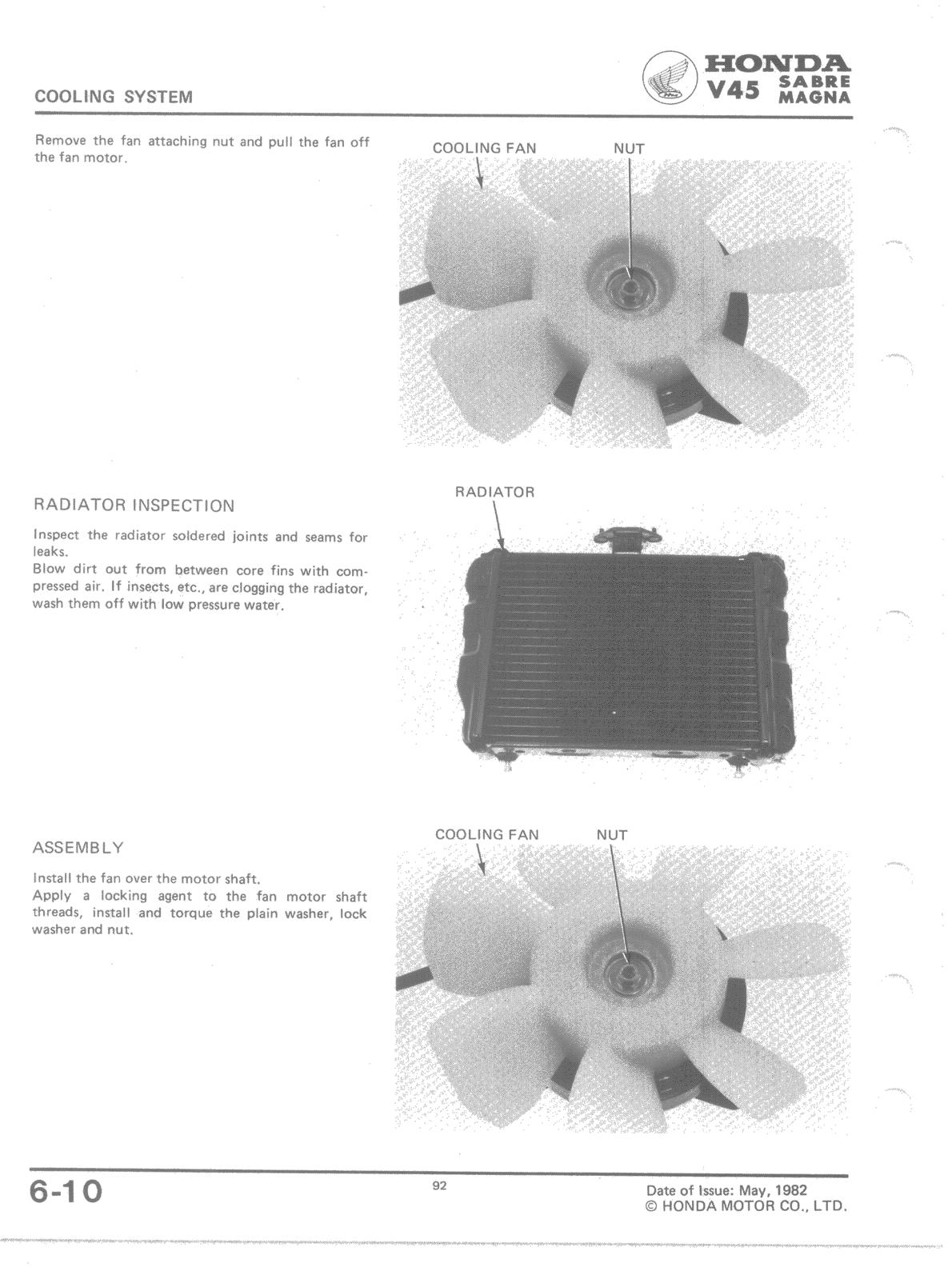

COOLING SYSTEM HONDA V45 SABRE Remove the fan attaching nut and pull the fan off the fan motor. COOLING FAN NUT RADIATOR RADIATOR INSPECTION Inspect the radiator soldered joints and seams for leaks. Blow dirt out from between core fins with compressed air. If insects, etc., are clogging the radiator, wash them off with low pressure water. COOLING FAN NUT ASSEMBLY Install the fan over the motor shaft. Apply a locking agent to the fan motor shaft threads, install and torque the plain washer, lock washer and nut. 92 6-10 Date of Issue: May, 1982 0 HONDA MOTOR CO., LTD.
