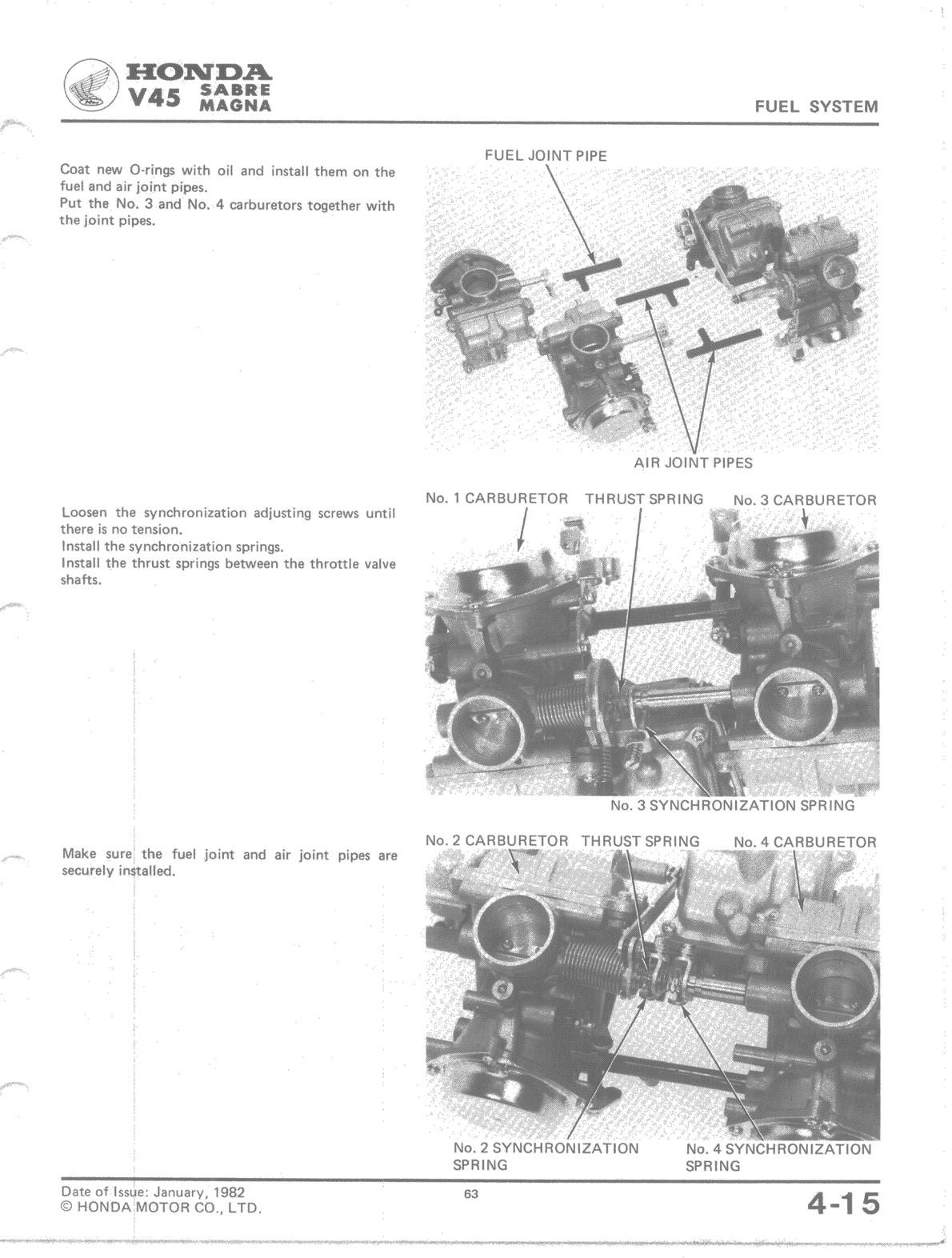

V45 FUEL SYSTEM FUEL JOINT PIPE Coat new 0-rings with oil and install them on the fuel and air joint pipes. Put the No. 3 and No. 4 carburetors together with the joint pipes. AIR JOINT PIPES No. 1 CARBURETOR THRUST SPRING No. 3 CARBURETOR No. 3 SYNCHRONIZATION SPRING Loosen the synchronization adjusting screws until there is no tension. Install the synchronization springs. Install the thrust springs between the throttle valve shafts. Make sure, the fuel joint and air joint pipes are securely installed. No. 4 CARBURETOR No. 2 CARBURETOR THRUST SPRING No. 2 SYNCHRONliAtioN SPRING No. 4 SYNCHRONIZATION SPRING 63 Date of Issue: January, 1982 HONDA MOTOR CO., LTD. 4-15
