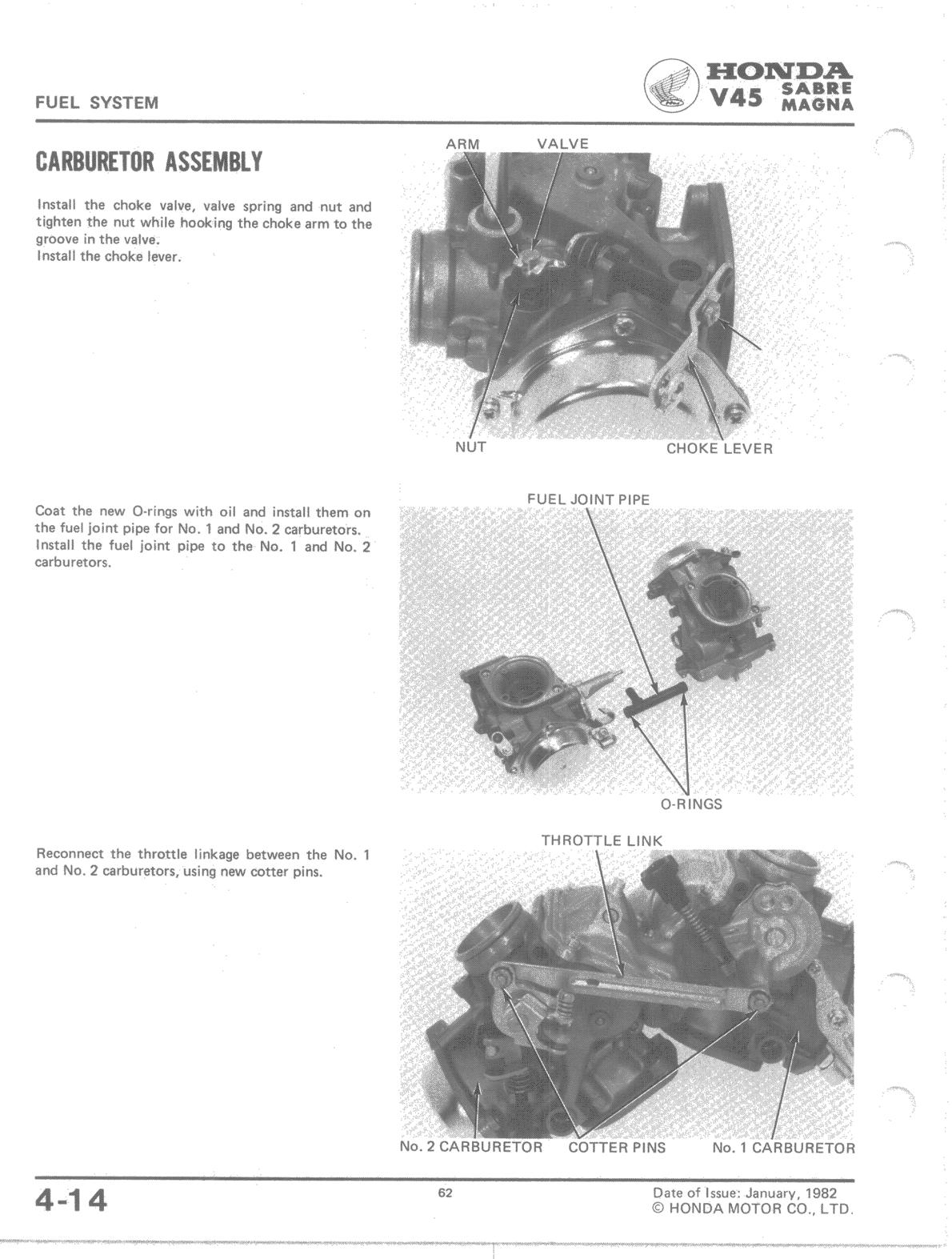

ARM VALVE CHOKE LEVER NUT No. 2 CARBURETOR No. 1 CARBURETOR COTTER PINS FUEL JOINT PIPE Coat the new 0-rings with oil and install them on the fuel joint pipe for No. 1 and No. 2 carburetors. Install the fuel joint pipe to the No. 1 and No. 2 carburetors. 0-RINGS THROTTLE LINK 41 CARBURETOR ASSEMBLY Install the choke valve, valve spring and nut and tighten the nut while hooking the choke arm to the groove in the valve. Install the choke lever. Reconnect the throttle linkage between the No. 1 and No. 2 carburetors, using new cotter pins. 62 FUEL SYSTEM Date of Issue: January, 1982 © HONDA MOTOR CO., LTD. 4-14
