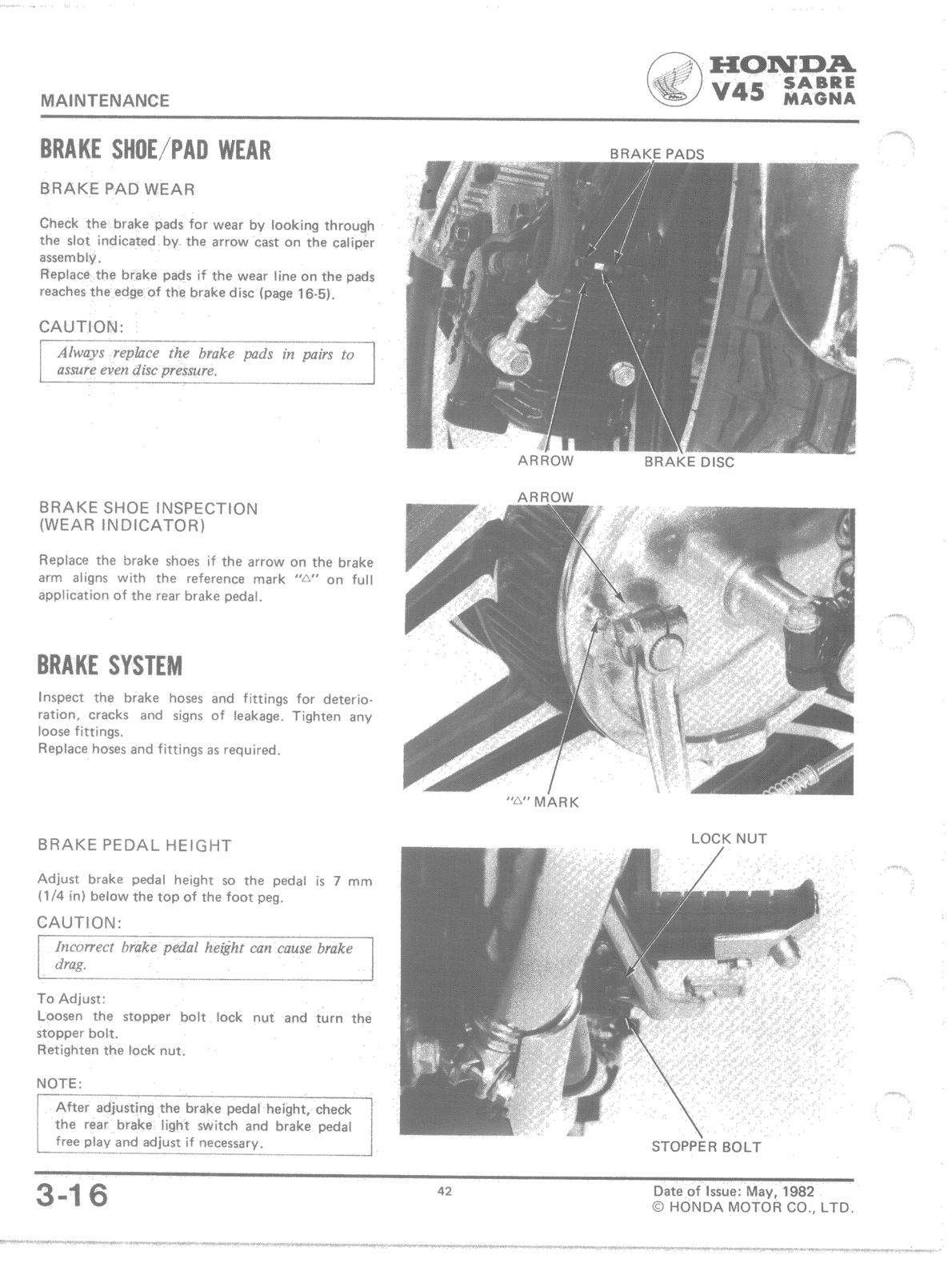

MAINTENANCE BRAKE SHOE/PAD WEAR BRAKE PAD WEAR Check the brake pads for wear by looking through the slot indicated by the arrow cast on the caliper assembly. Replace the brake pads if the wear line on the pads reaches the edge of the brake disc (page 16-5). CAUTION: Always replace the brake pads in pairs to assure even disc pressure. BRAKE PADS ARROW BRAKE DISC ARROW -A" MARK BRAKE SHOE INSPECTION (WEAR INDICATOR) Replace the brake shoes if the arrow on the brake arm aligns with the reference mark "A" on full application of the rear brake pedal. BRAKE SYSTEM Inspect the brake hoses and fittings for deterioration, cracks and signs of leakage. Tighten any loose fittings. Replace hoses and fittings as required. BRAKE PEDAL HEIGHT Adjust brake pedal height so the pedal is 7 mm (1/4 in) below the top of the foot peg. CAUTION: Incorrect brake pedal height can cause brake drag. To Adjust: Loosen the stopper bolt lock nut and turn the stopper bolt. Retighten the lock nut. NOTE: After adjusting the brake pedal height, check the rear brake light switch and brake pedal free play and adjust if necessary. LOCK NUT STOPPER BOLT 42 Date of Issue: May, 1982 C) HONDA MOTOR CO., LTD. 3-16
