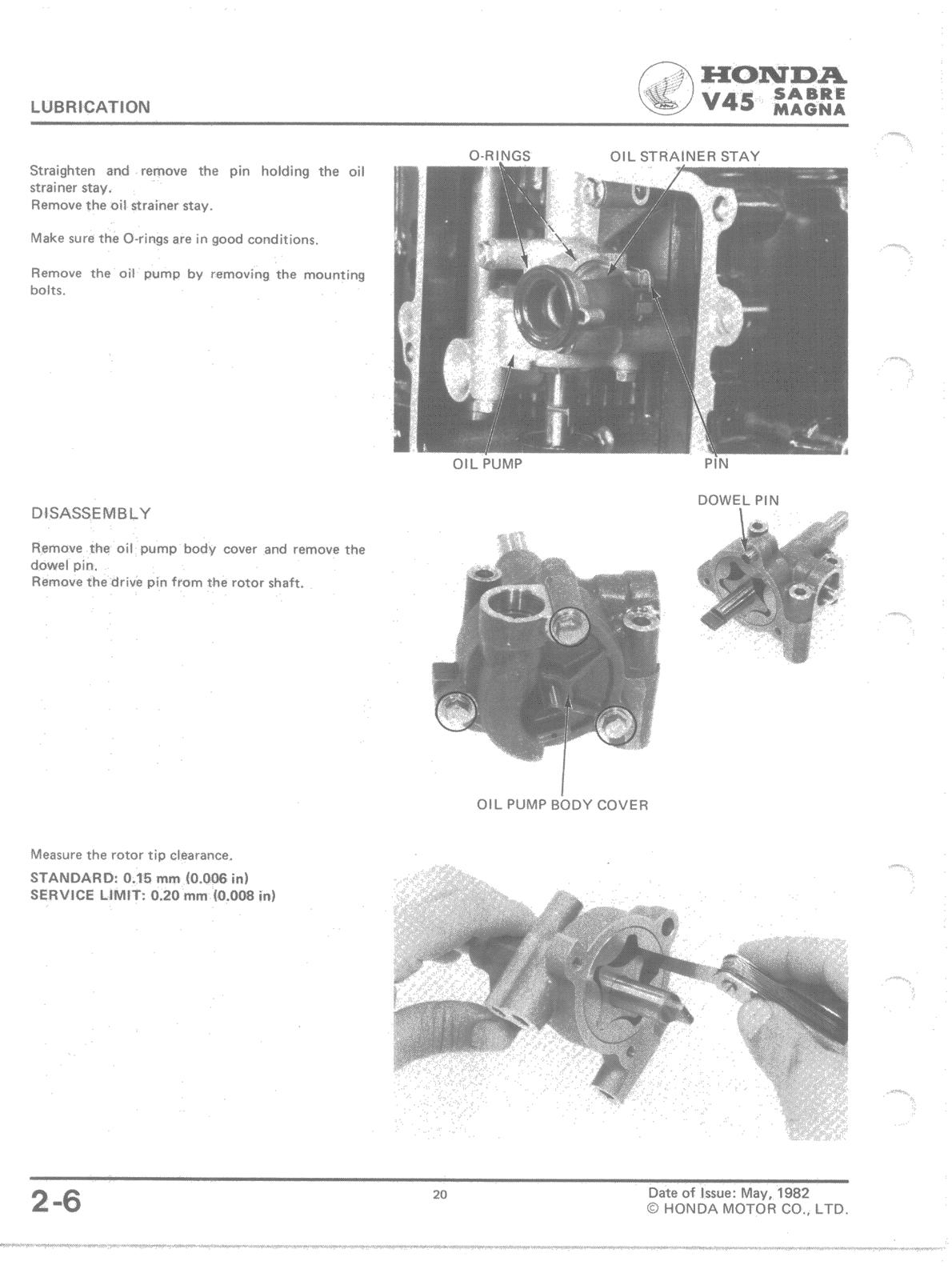

LUBRICATION V45 0-RINGS OIL STRAINER STAY Measure the rotor tip clearance. STANDARD: 0.15 mm (0.006 in) SERVICE LIMIT: 0.20 mm (0.008 in) ir OIL PUMP PIN Straighten and remove the pin holding the oil strainer stay. Remove the oil strainer stay. Make sure the 0-rings are in good conditions. Remove the oil pump by removing the mounting bolts. DOWEL PIN DISASSEMBLY Remove the oil pump body cover and remove the dowel pin. Remove the drive pin from the rotor shaft. OIL PUMP BODY COVER 20 Date of lssue: May, 1982 O HONDA MOTOR CO., LTD. 2-6
