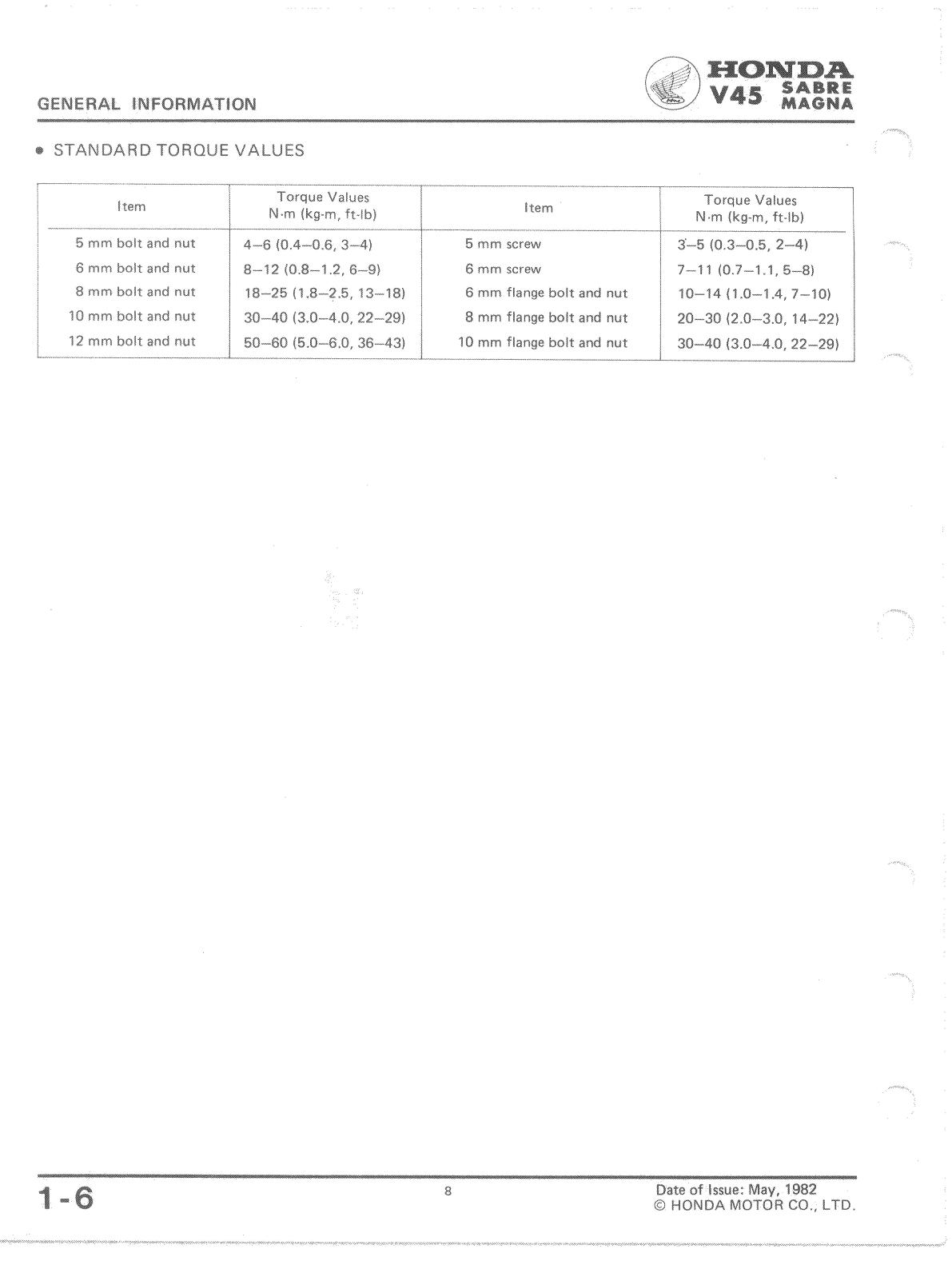

STANDARD TORQUE VALUES Item Torque Values Itern Torque Values N•m (kg-rn, ft-lb) N.m (kg-m, ft-lb) 5 mm bolt and nut 4-6 (0.4-0.6, 3-4) 5 mm screw 3-5 (0.3-0.5, 2-4) 6 mm bolt and nut 8-12 (0.8-1.2, 6-9) 6 mm screw 7-11(0.7-1.1, 5-8) 8 mm bolt and nut 18-25 (1.8-25, 13-18) 6 mm flange bolt and nut 10-14 (1.0-1.4, 7-10) 10 mm bolt and nut 30-40 (3.0-4.0, 22-29) 8 mm flange bolt and nut 20-30 (2.0-3.0, 14-22) 12 mm bolt and nut 50-60 (5.0-6.0, 36-43) 10 mm flange bolt and nut 30-40 (3.0-4.0, 22-29) 8 HONDA SARE V4S GENERAL INFORMATION Date of Issue: May, 1982 © HONDA MOTOR CO., LTD. 1 - 6
